48V Mild Hybrid Connection Solution
Connector and terminal selection support for 48V mild-hybrid power, DC/DC, auxiliary drives and distribution circuits.
Industry
Automotive OEM
Application
48V Mild Hybrid System
Solution decision path
From application problem to connector selection
Use this route to turn an operating condition into technical requirements, suitable product families and a complete RFQ package.
01
Application problem
What operating condition is creating connector risk?
A 48V architecture increases power density and introduces new interface, transient, temperature and protection requirements that cannot be handled by nominal voltage alone.
Define use case
02
Connector requirement
Which technical requirements must be confirmed first?
Voltage: nominal, maximum operating and transient conditions / Current: continuous/peak load, duty cycle, cable and temperature rise / Interface: DC/DC, starter-generator, distribution, pump or auxiliary module
Check requirements
03
Product route
Which product families should be reviewed for this solution?
2.8mm Sealed Automotive Power Connector / 6.3mm Automotive Power Terminal / 120A EV Power Connector
Review products
04
RFQ evidence
What information should the buyer prepare before quotation?
48V subsystem and mating device / Nominal/maximum voltage and transient requirement / Continuous/peak current, duty cycle and cable size
Submit project RFQ
Application challenge
Customer problem
A 48V architecture increases power density and introduces new interface, transient, temperature and protection requirements that cannot be handled by nominal voltage alone.
48V circuit requirements review
Power terminal and cable matching
Module interface selection
Project validation checklist
Connector requirements
Voltage
nominal, maximum operating and transient conditions
Current
continuous/peak load, duty cycle, cable and temperature rise
Interface
DC/DC, starter-generator, distribution, pump or auxiliary module
Protection
polarization, sealing, touch and service requirements by project
Engineering review
Technical risks to confirm before product selection
These points help buyers understand why connector selection should be reviewed by application, not only by product name or pin count.
Nominal 48V does not define the maximum operating or transient voltage.
Power connector temperature rise depends on current profile, contact, cable, enclosure and ambient temperature.
Color, touch protection, sealing and service-disconnect requirements depend on customer and system rules.
RFQ information checklist
48V subsystem and mating device
Nominal/maximum voltage and transient requirement
Continuous/peak current, duty cycle and cable size
Temperature, sealing, polarization and protection requirements
Interface drawing and test plan
Recommended products
Product options for this solution
Use these product records as a starting point. Final selection depends on the mating interface, electrical load, environment, cable and validation requirements.
2.8mm Sealed Automotive Power Connector
Sealed power harness connector
- Pin
- 2.8mm Series
- Voltage
- 24V
- Current
- 20A
- IP
- IP67
6.3mm Automotive Power Terminal
Power terminal
- Pin
- 6.3mm
- Voltage
- 24V
- Current
- 40A
- IP
- Housing dependent

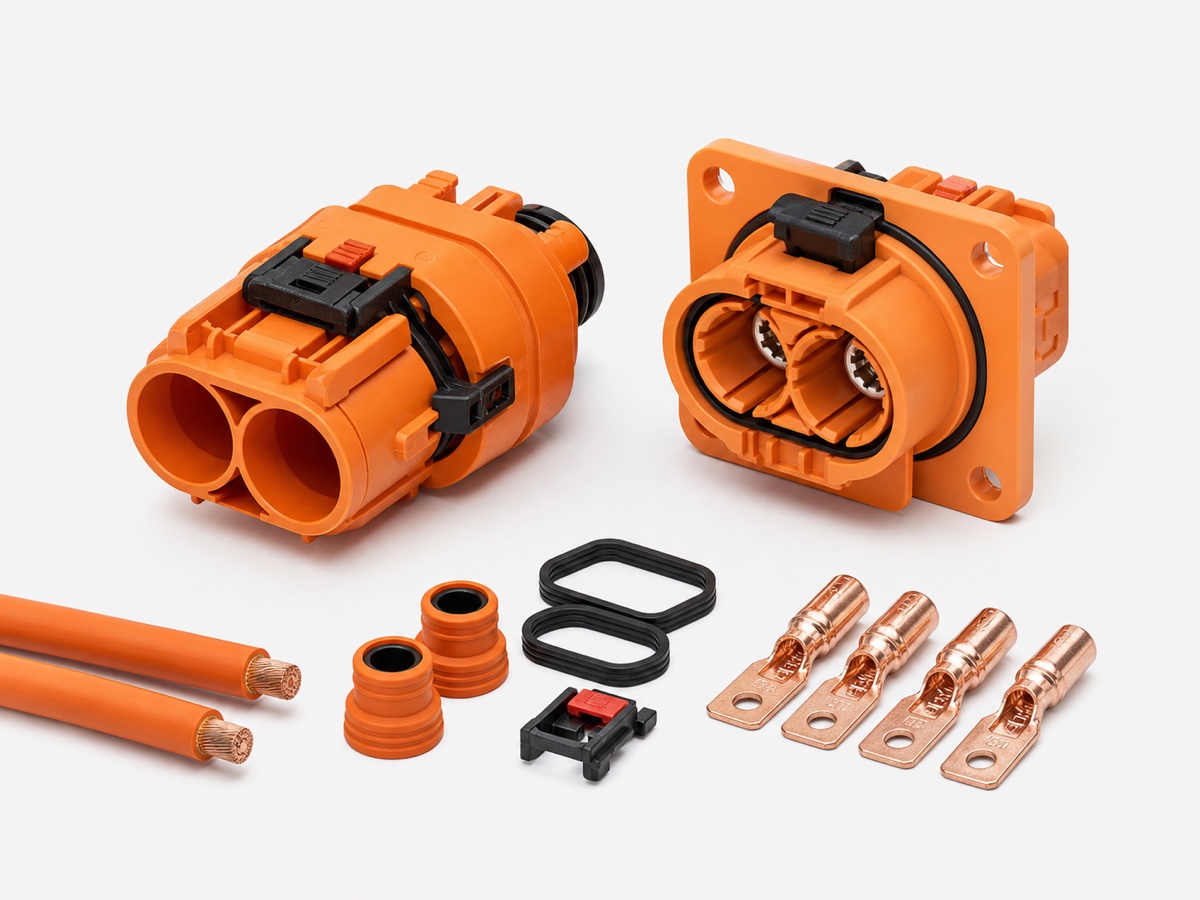

120A EV Power Connector
High voltage power connector
- Pin
- 2 Pole
- Voltage
- 600V
- Current
- 120A
- IP
- IP67
24 Pin Automotive Control Module Connector
Control module connector
- Pin
- 24 Pin
- Voltage
- 24V
- Current
- 5A
- IP
- Application dependent
Manufacturing support
Engineering and production support
Support can be coordinated from requirement review and product matching through samples, tooling discussion, testing requirements and production preparation.
Requirement review
Connector selection
Tooling support
Sample testing
Mass production
Quality inspection
Solution FAQ
Is 48V connector selection the same as 12V selection?
No. Maximum voltage, transients, power level, spacing, temperature rise and protection requirements must be reviewed for the actual 48V system.
What 48V applications can be reviewed?
Typical requirement paths include DC/DC, power distribution, starter-generator, electric pumps, fans and other auxiliary electrification interfaces.
Need this connection solution reviewed?
Send application, drawing, voltage, current, environment and annual demand. We will match product options and engineering requirements.
