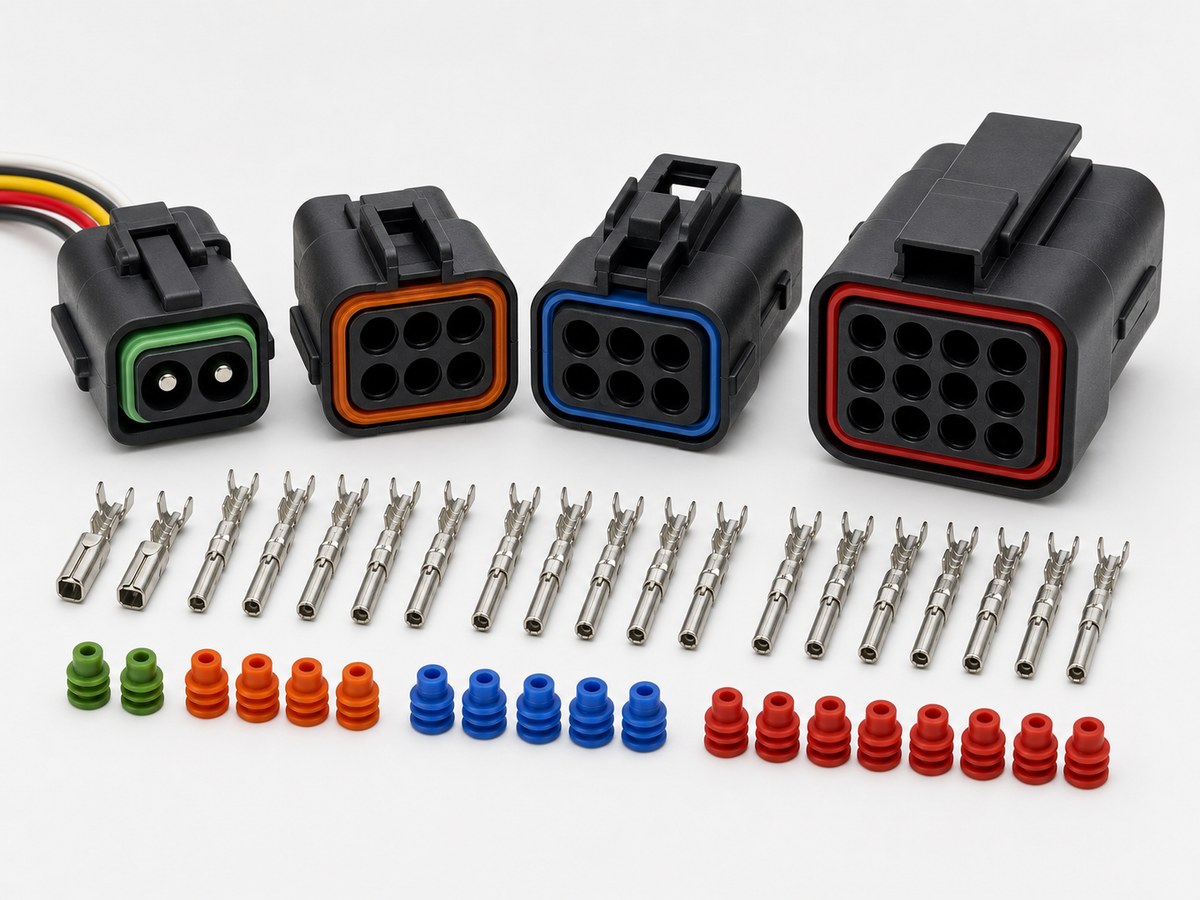

Waterproof Automotive Connectors
IP67 and IP68 sealed automotive connectors for wiring harness, sensor, lighting and EV applications exposed to water, dust and vibration.
Selection scope
Common applications
8
Product records
5
Pin / series values
7
Applications
1
IP values
4
Terminal families
Category sourcing route
Choose the right route for your requirement
Start with the information already available, compare compatible product records, then send the drawing or application details that still need engineering confirmation.
Search by specification
Pin count, voltage, current, IP rating, terminal and wire range.
Procurement attributes
Shortlist product records before opening detail pages.
Search by application
Wiring Harness / Vehicle Lighting / Outdoor Sensor / EV Battery
Related solutions
Move from vehicle system problem to recommended connector path.
Compare product records
8 category records with technical fields.
Comparison table
Compare model, electrical rating, IP rating, terminal and document readiness.
Prepare RFQ
Drawing, sample photo, equivalent model, quantity and application environment.
Submit RFQ
Send enough information for engineering review, not only a price request.
Procurement attributes for this category
Review the pin counts, IP ratings, terminal families, wire ranges and applications represented in the current product records before opening a detail page or requesting an engineering match.
Pin / Series
IP Rating
Terminal
Wire Range
Application
Products
Waterproof Automotive Connectors Products
Compare model number, core specifications, application and document status before requesting samples or quotation.
Matching products
8 results
2 Pin Waterproof Automotive Connector
Sealed wire-to-wire
- Pin
- 2 Pin
- Voltage
- 24V
- Current
- 10A
- IP
- IP67
4 Pin IP67 Waterproof Automotive Connector
Sealed wire-to-wire
- Pin
- 4 Pin
- Voltage
- 24V
- Current
- 10A
- IP
- IP67
6 Pin Sealed Automotive Connector
Sealed wire-to-wire
- Pin
- 6 Pin
- Voltage
- 24V
- Current
- 10A
- IP
- IP67
2 Pin Sealed Automotive Sensor Connector
Sealed sensor connector
- Pin
- 2 Pin
- Voltage
- 24V
- Current
- 8A
- IP
- IP67
3 Pin IP67 Automotive Sensor Connector
Sealed sensor connector
- Pin
- 3 Pin
- Voltage
- 24V
- Current
- 8A
- IP
- IP67
12 Pin Waterproof Automotive Connector
Sealed multi-pin connector
- Pin
- 12 Pin
- Voltage
- 24V
- Current
- 8A
- IP
- IP67
4 Pin Automotive Lighting Connector
Sealed lighting connector
- Pin
- 4 Pin
- Voltage
- 24V
- Current
- 10A
- IP
- IP67
Trailer Lighting Waterproof Connector
Sealed lighting connector
- Pin
- 6 Pin
- Voltage
- 24V
- Current
- 10A
- IP
- IP67
Comparison
Procurement comparison table
Compare model, connector type, pin count, electrical rating, terminal series, wire range and available document status in one view.
| Product | Model | Pin | Electrical | IP | Terminal | Wire | Technical files |
|---|---|---|---|---|---|---|---|
| 2 Pin Waterproof Automotive Connector Sealed wire-to-wire | AC-WP-002 | 2 Pin | 24V / 10A | IP67 | 1.5mm sealed crimp terminal | 0.5-1.5 mm² | Confirm by model and project |
| 4 Pin IP67 Waterproof Automotive Connector Sealed wire-to-wire | AC-WP-004 | 4 Pin | 24V / 10A | IP67 | 1.2mm sealed crimp terminal | 0.5-1.5 mm² | Confirm by model and project |
| 6 Pin Sealed Automotive Connector Sealed wire-to-wire | AC-WP-006 | 6 Pin | 24V / 10A | IP67 | 1.5mm sealed terminal | 0.5-2.0 mm² | Confirm by model and project |
| 2 Pin Sealed Automotive Sensor Connector Sealed sensor connector | AC-SN-WP002 | 2 Pin | 24V / 8A | IP67 | 1.2mm sealed crimp terminal | Confirm by application | Confirm by model and project |
| 3 Pin IP67 Automotive Sensor Connector Sealed sensor connector | AC-SN-WP003 | 3 Pin | 24V / 8A | IP67 | 1.2mm sealed crimp terminal | Confirm by application | Confirm by model and project |
| 12 Pin Waterproof Automotive Connector Sealed multi-pin connector | AC-WP-012 | 12 Pin | 24V / 8A | IP67 | 1.2mm sealed crimp terminal | Confirm by application | Confirm by model and project |
| 4 Pin Automotive Lighting Connector Sealed lighting connector | AC-LGT-004 | 4 Pin | 24V / 10A | IP67 | 1.2mm sealed crimp terminal | Confirm by application | Confirm by model and project |
| Trailer Lighting Waterproof Connector Sealed lighting connector | AC-TR-LGT | 6 Pin | 24V / 10A | IP67 | Sealed crimp terminal for trailer lighting harness review | 0.5-1.5 mm² | Confirm by model and project |
Technical Overview
Related Solutions
RFQ preparation
Application and vehicle location
Pin layout, wire size and electrical requirement
Drawing, sample photo, mating reference and quantity
FAQ
Waterproof Automotive Connectors selection questions
Use these answers to define the requirement before requesting a drawing, sample or quotation.
Should I choose an IP67 or IP68 automotive connector?
Choose the rating from the real exposure and test condition. IP68 is not automatically required for every outdoor application, and cable sealing must be reviewed with the housing.
What affects waterproof connector performance?
Interface seal design, wire seal fit, cable outer diameter, terminal insertion, latch engagement and assembly process all affect sealing performance.
Can I request drawings, samples or product matching for waterproof automotive connectors?
Yes. Send the application, available drawing or sample photo, mating reference, required specifications and quantity. File availability and sample options are confirmed for the selected model.
Need help matching this category?
Send your application, pin count, voltage, current, IP rating or drawing. The engineering team can recommend suitable connector options.
