Transmission Control Connector Solution
Connector selection support for transmission control modules, solenoids, sensors and gearbox harness interfaces.
Industry
Automotive Electronics Supplier
Application
Transmission Control
Solution decision path
From application problem to connector selection
Use this route to turn an operating condition into technical requirements, suitable product families and a complete RFQ package.
01
Application problem
What operating condition is creating connector risk?
Transmission systems combine module signals, actuator circuits and harsh underbody or powertrain conditions, so connector selection must coordinate pin map, terminal load, sealing, temperature and harness routing.
Define use case
02
Connector requirement
Which technical requirements must be confirmed first?
Interface: TCU, valve body, solenoid, speed sensor and gearbox harness / Circuits: mixed signal, control and actuator loads by pin map / Environment: temperature, vibration, fluid exposure and sealing by location
Check requirements
03
Product route
Which product families should be reviewed for this solution?
18 Pin Automotive ECU Connector / 24 Pin Automotive Control Module Connector / 0.64mm Automotive ECU Terminal
Review products
04
RFQ evidence
What information should the buyer prepare before quotation?
Transmission application and module interface / Pin map, voltage/current and wire size by circuit / Temperature, fluid, vibration and IP requirements
Submit project RFQ
Application challenge
Customer problem
Transmission systems combine module signals, actuator circuits and harsh underbody or powertrain conditions, so connector selection must coordinate pin map, terminal load, sealing, temperature and harness routing.
TCU interface review
Pin-map and terminal matching
Sealed harness selection
Drawing and sample comparison
Connector requirements
Interface
TCU, valve body, solenoid, speed sensor and gearbox harness
Circuits
mixed signal, control and actuator loads by pin map
Environment
temperature, vibration, fluid exposure and sealing by location
Control
keying, terminal retention, secondary lock and traceable drawing
Engineering review
Technical risks to confirm before product selection
These points help buyers understand why connector selection should be reviewed by application, not only by product name or pin count.
Similar housings may use different keying, terminal families or circuit allocation.
Actuator circuits and low-current signals may require different terminal sizes within one system.
Fluid exposure, temperature and vibration requirements depend on the exact gearbox or module location.
RFQ information checklist
Transmission application and module interface
Pin map, voltage/current and wire size by circuit
Temperature, fluid, vibration and IP requirements
Connector/header drawing, sample or reference model
Sample schedule and validation plan
Recommended products
Product options for this solution
Use these product records as a starting point. Final selection depends on the mating interface, electrical load, environment, cable and validation requirements.
18 Pin Automotive ECU Connector
ECU connector
- Pin
- 18 Pin
- Voltage
- 24V
- Current
- 5A
- IP
- Application dependent
24 Pin Automotive Control Module Connector
Control module connector
- Pin
- 24 Pin
- Voltage
- 24V
- Current
- 5A
- IP
- Application dependent

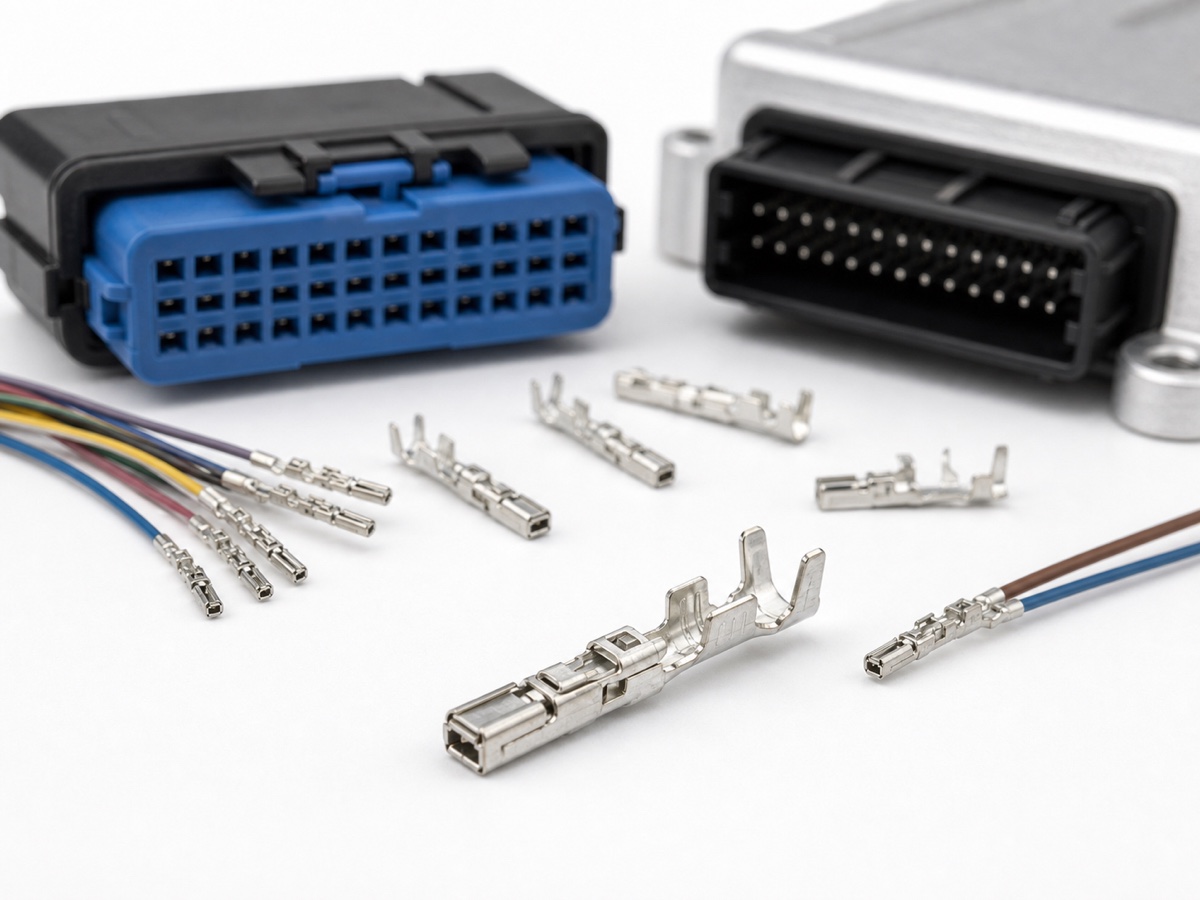

0.64mm Automotive ECU Terminal
ECU signal terminal
- Pin
- 0.64mm
- Voltage
- 24V
- Current
- 5A
- IP
- Housing dependent

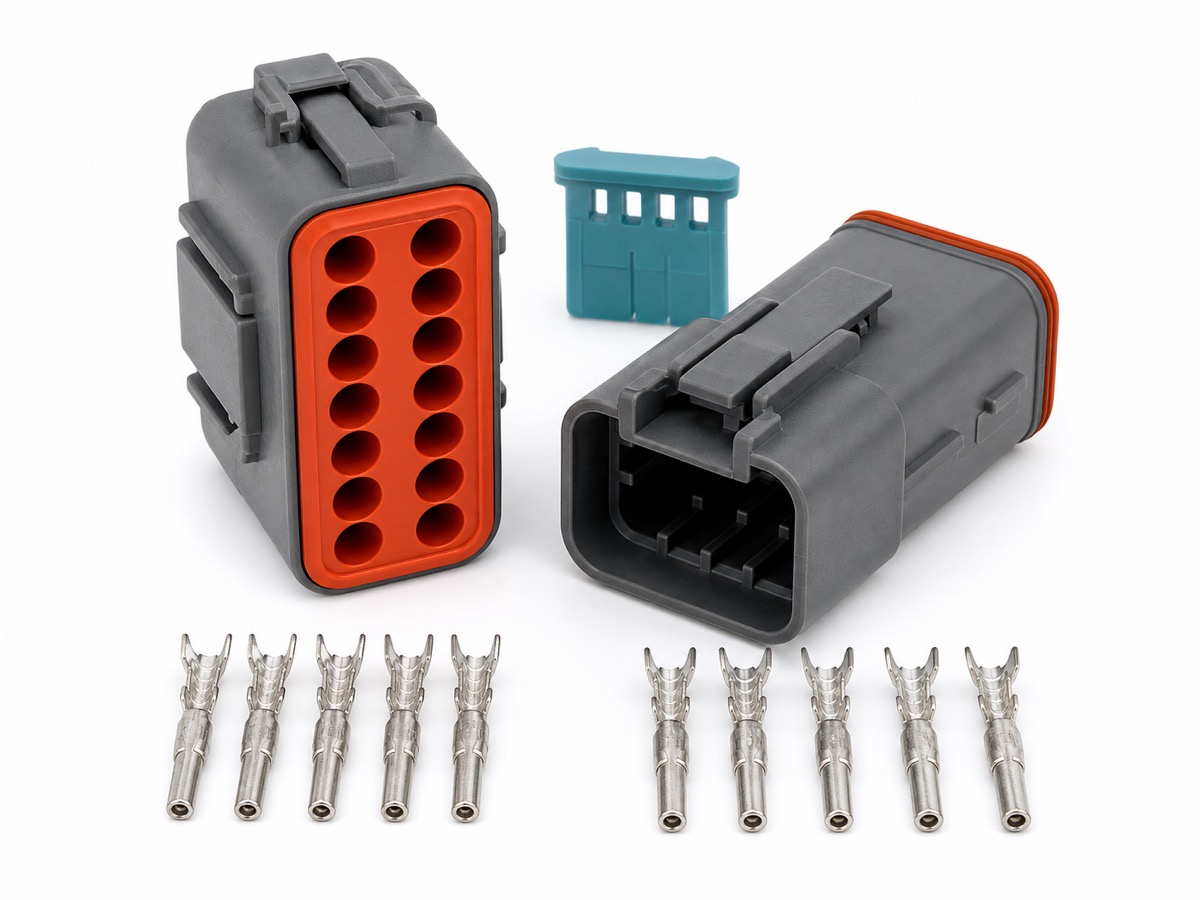

12 Pin Waterproof Automotive Connector
Sealed multi-pin connector
- Pin
- 12 Pin
- Voltage
- 24V
- Current
- 8A
- IP
- IP67
Manufacturing support
Engineering and production support
Support can be coordinated from requirement review and product matching through samples, tooling discussion, testing requirements and production preparation.
Requirement review
Connector selection
Tooling support
Sample testing
Mass production
Quality inspection
Solution FAQ
Can a transmission connector be selected from pin count alone?
No. Keying, terminal load, pin map, sealing, temperature, fluid exposure and the mating interface must also be confirmed.
What should be sent for a TCU connector review?
Send the module or header drawing, pin map, circuit loads, wire sizes, environment requirements and any reference connector or sample.
Need this connection solution reviewed?
Send application, drawing, voltage, current, environment and annual demand. We will match product options and engineering requirements.
